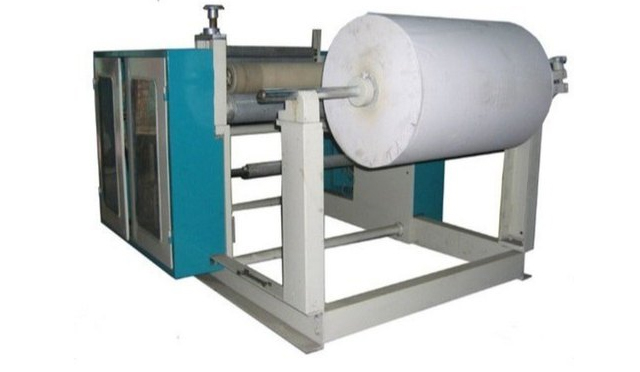

This hi-speed toilet paper toilet roll making machine is available in 810mm, 1020mm & 1650 mm working widths. It is slitting machine with perforation. Slitting blades could be adjusted to make Kitchen Rolls & Industrial rolls. Electronic counter is provided which controls the No. of sheets to be wounded over a given roll in this toilet roll making machine.
- Consistent Functioning
- Energy Efficient Operation
- Longer Functional Life
- Perforation Unit
- Slitting Unit
- Embossing Unit (Optional)
Special Features:
Product Details:
| Model | Toilet Roll Making Machine with Embossing |
|---|---|
| Size | 810mm, 1020mm & 1650 working |
| Automatic Grade | Automatic & Semi-Automatic |
| Slitting distance | 99 mm or as per requirement |
| Cutter | 8 Rotary Cutter with Holder & Bottom |
| Perforation | Repeat on 110 mm above |
| Maximum rewind | 200mm |
| Motor | 2 HP DC Motor with thyrister control drive |
| Speed | 1500 to 1,800 Rolls/8 Hrs/100gm |
| Unwind Station | One |
| Man Power | One Operator & 1 Packer |
| Raw Material | 16 gsm (2ply) |
| Maximum Unwind Dia | 1200 mm Max |
| Counting | Auto cut Digitally Counting |
| Embossing | Attachment with mechanical Embossing ( Metal to rubber) design as per requirement |
Reel to Sheet Cutter
The perfectly built & designed to increase production and fine cutting of corrugated board without damaging the flutes of the board as well as plain paper. As a perfect alternative to Hand Operated Board Cutting Machine. It is possible to use the machine as an independent unit or it can also be attached with the corrugating Machine. If required P.I.V Gear Box is provided to ensure accurate cutting of the sheet as per required length and easy to adjust and operate. Delivery Conveyor Stand is provided to carry the Sheets. This Machine is designed for high production and straight cutting of sheets or two ply corrugated board without damaging flutes & liner paper. Mostly, this machine is used as an independent unit for direct and accurate sheet cutting.
- Machine is having special feature of oil bath gear system with oil lubricating pump
- Machine is fitted with heavy duty excel makes P.I.V. Gear Box
- Imported chain to adjust the length of the sheet to be cut with Gear Ratio 1:5
- Machine is driven by A.C. frequency drive with provision for synchronization of speed between Sheet Cutter with Corrugating Machine
- With A.C. Motor & Starter
- Feeding section with concealed gears
- Cutting section with Blade workable at four edges
- Delivery conveyor with endless Belts
- Electronic sheet counter
- Paper cutting capacity is 200 feet per minute
Features:
- This strongly design machine can be used as an independent unit or can be synchronized to a corrugation Machine for direct and accurate sheet cutting
- It minimizes the percentage of wastage
Specifications Body:
- PIV gear box is provided for adjusting of sheet to the required length from 20" to 80"
- PIV gear box 1:5 ratio shall be provided
Setting Action:
- The machine is robust in design & in grade casting
- Strong in construction and easy to operate
- Nylon sandwich belt shall be provided as a delivery conveyor to carry the sheets out
- Electric motors of 3 phase A/C 1440 RPM / 440 V ISI mark ISO 9001:2008 certified
- All moving parts are protected by safety guards
