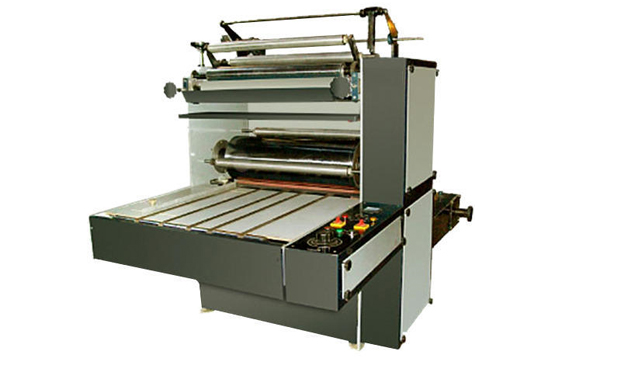

Lamination machine is particularly designed to meet generally demand of film lamination jobs, examples like Poster, Greeting Cards, Book Titles, Card board cartons, Folding boxes etc. There are three types of Lamination Machine-Cold Lamination Machine, Thermal Lamination Machine, 2 in 1 Lamination Machine.
- Electric control panel auto volt transformer
- Pneumatically controlled in-feed nip rollers for sheet separation
- Sheet counter with digital display
- Delivery/ Collation table
- Unwind shaft with lateral roll adjustable & friction brake
Salient Features:
Specifications of Lamination Machine
| Size | 24″(610mm) | 30″(760mm) | 36″(915mm) |
|---|---|---|---|
| Max.Laminating Width | 610 mm x any length | 760 mm x any length | 935 mm x any length |
| Speed | 0-600 mt. /Hr. | 0-550 mt./Hr. | 0-550 mt./Hr. |
| Max. Film Roll Width | 610mm | 760mm | 915mm |
| Max.Film Roll Diameter | 305mm | 305mm | 305mm |
| Power Required 220V DC Motor | 0.8KW | 1.2KW | 1.5KW |
| Weight Approx. | 100 Kg | 1400Kg | 1600Kg |
